Diagramy

Copy@startuml

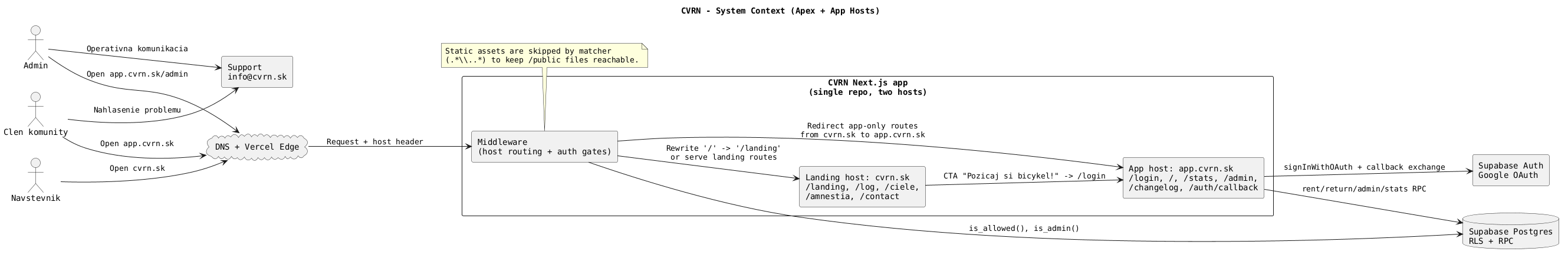

title CVRN - System Context (Apex + App Hosts)

left to right direction
skinparam shadowing false
skinparam defaultFontName Monospaced

actor "Navstevnik" as Visitor
actor "Clen komunity" as Member
actor "Admin" as Admin

cloud "DNS + Vercel Edge" as Edge

rectangle "CVRN Next.js app\n(single repo, two hosts)" as NextApp {
  rectangle "Middleware\n(host routing + auth gates)" as Middleware
  rectangle "Landing host: cvrn.sk\n/landing, /log, /ciele,\n/amnestia, /contact" as Landing
  rectangle "App host: app.cvrn.sk\n/login, /, /stats, /admin,\n/changelog, /auth/callback" as App
}

rectangle "Supabase Auth\nGoogle OAuth" as Auth
database "Supabase Postgres\nRLS + RPC" as DB
rectangle "Support\ninfo@cvrn.sk" as Support

Visitor --> Edge : Open cvrn.sk
Member --> Edge : Open app.cvrn.sk
Admin --> Edge : Open app.cvrn.sk/admin

Edge --> Middleware : Request + host header
Middleware --> Landing : Rewrite '/' -> '/landing'\nor serve landing routes
Middleware --> App : Redirect app-only routes\nfrom cvrn.sk to app.cvrn.sk

App --> Auth : signInWithOAuth + callback exchange
App --> DB : rent/return/admin/stats RPC
Middleware --> DB : is_allowed(), is_admin()

Landing --> App : CTA "Pozicaj si bicykel!" -> /login
Member --> Support : Nahlasenie problemu
Admin --> Support : Operativna komunikacia

note bottom of Middleware
  Static assets are skipped by matcher
  (.*\\..*) to keep /public files reachable.
end note

@enduml

Copy@startuml
title CVRN - Middleware Auth and Access Flow

skinparam shadowing false
skinparam defaultFontName Monospaced

start
:HTTP request na route;
:Normalize host + pathname;

if (Host je cvrn.sk/www.cvrn.sk?) then (ano)
  if (Path == / ?) then (ano)
    :Rewrite na /landing;
    stop
  endif

  if (Path je app-only?\n/login, /stats, /admin,\n/auth/callback, /changelog, /api) then (ano)
    :Redirect na https://app.cvrn.sk + path;
    stop
  endif

  :Povolit landing route;
  stop
endif

:Init Supabase middleware client;
if (Init zlyha?) then (ano)
  if (Public path?) then (ano)
    :Povolit request bez auth checku;
    stop
  else (nie)
    :Redirect /login?error=...;
    stop
  endif
endif

:Nacitaj session usera;
if (User existuje?) then (nie)
  if (Public path?) then (ano)
    :Povolit request;
    stop
  else (nie)
    :Redirect /login;
    stop
  endif
endif

if (Path == /login?) then (ano)
  :Redirect /;
  stop
endif

if (Public path?) then (ano)
  :Povolit request;
  stop
endif

:RPC is_allowed();
if (Allowed?) then (nie)
  :Redirect /not-authorized;
  stop
endif

if (Path zacina /admin?) then (ano)
  :RPC is_admin();
  if (Admin?) then (nie)
    :Redirect /;
    stop
  endif
endif

:Povolit request;
stop

@enduml

Copy@startuml

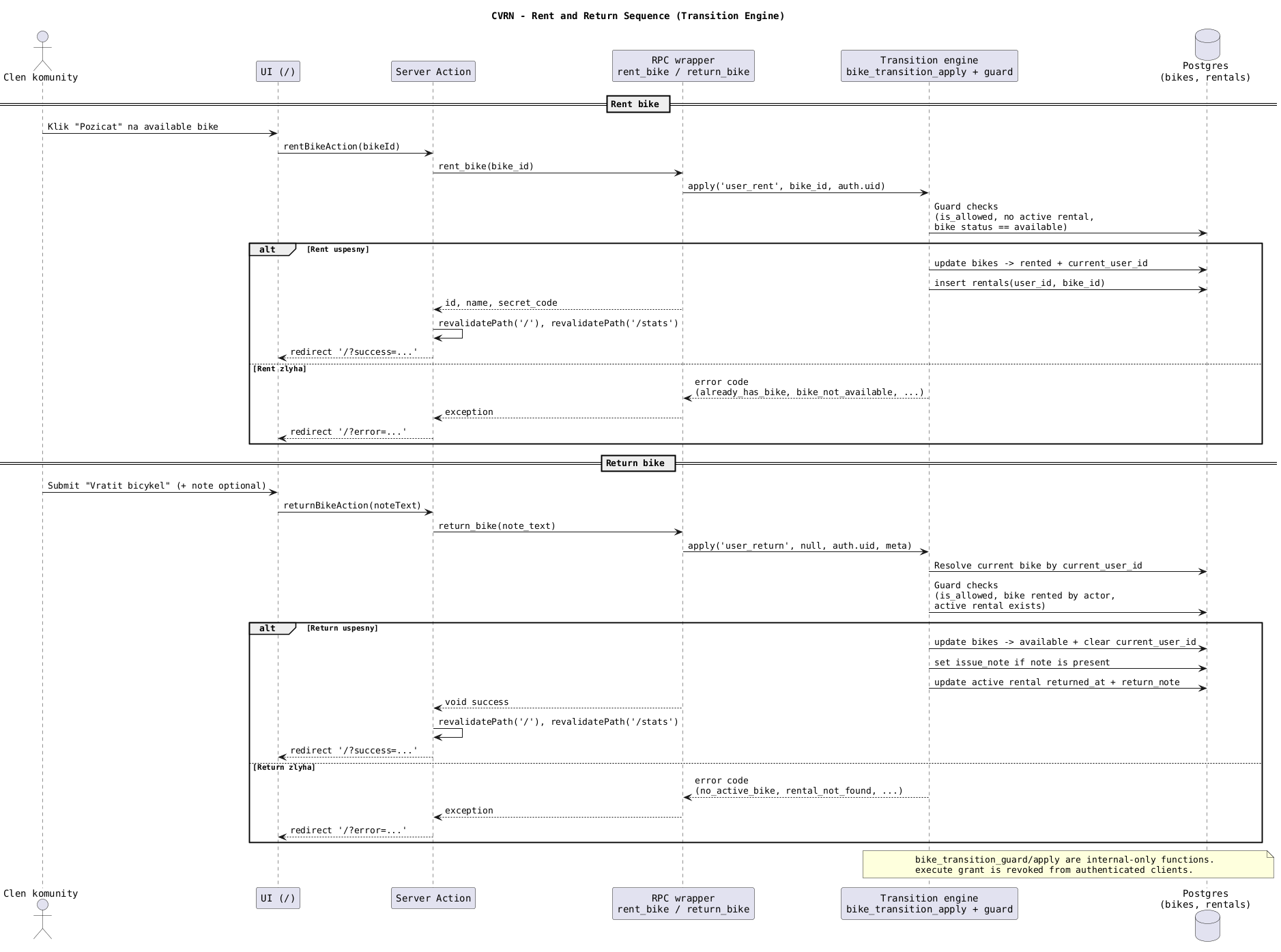

title CVRN - Rent and Return Sequence (Transition Engine)

skinparam shadowing false
skinparam defaultFontName Monospaced

actor "Clen komunity" as Member
participant "UI (/)" as UI
participant "Server Action" as Action
participant "RPC wrapper\nrent_bike / return_bike" as RpcWrapper
participant "Transition engine\nbike_transition_apply + guard" as Transition
database "Postgres\n(bikes, rentals)" as DB

== Rent bike ==
Member -> UI: Klik "Pozicat" na available bike
UI -> Action: rentBikeAction(bikeId)
Action -> RpcWrapper: rent_bike(bike_id)
RpcWrapper -> Transition: apply('user_rent', bike_id, auth.uid)
Transition -> DB: Guard checks\n(is_allowed, no active rental,\nbike status == available)

alt Rent uspesny
  Transition -> DB: update bikes -> rented + current_user_id
  Transition -> DB: insert rentals(user_id, bike_id)
  RpcWrapper --> Action: id, name, secret_code
  Action -> Action: revalidatePath('/'), revalidatePath('/stats')
  Action --> UI: redirect '/?success=...'
else Rent zlyha
  Transition --> RpcWrapper: error code\n(already_has_bike, bike_not_available, ...)
  RpcWrapper --> Action: exception
  Action --> UI: redirect '/?error=...'
end

== Return bike ==
Member -> UI: Submit "Vratit bicykel" (+ note optional)
UI -> Action: returnBikeAction(noteText)
Action -> RpcWrapper: return_bike(note_text)
RpcWrapper -> Transition: apply('user_return', null, auth.uid, meta)
Transition -> DB: Resolve current bike by current_user_id
Transition -> DB: Guard checks\n(is_allowed, bike rented by actor,\nactive rental exists)

alt Return uspesny
  Transition -> DB: update bikes -> available + clear current_user_id
  Transition -> DB: set issue_note if note is present
  Transition -> DB: update active rental returned_at + return_note
  RpcWrapper --> Action: void success
  Action -> Action: revalidatePath('/'), revalidatePath('/stats')
  Action --> UI: redirect '/?success=...'
else Return zlyha
  Transition --> RpcWrapper: error code\n(no_active_bike, rental_not_found, ...)
  RpcWrapper --> Action: exception
  Action --> UI: redirect '/?error=...'
end

note over Transition,DB
  bike_transition_guard/apply are internal-only functions.
  execute grant is revoked from authenticated clients.
end note

@enduml

Copy@startuml

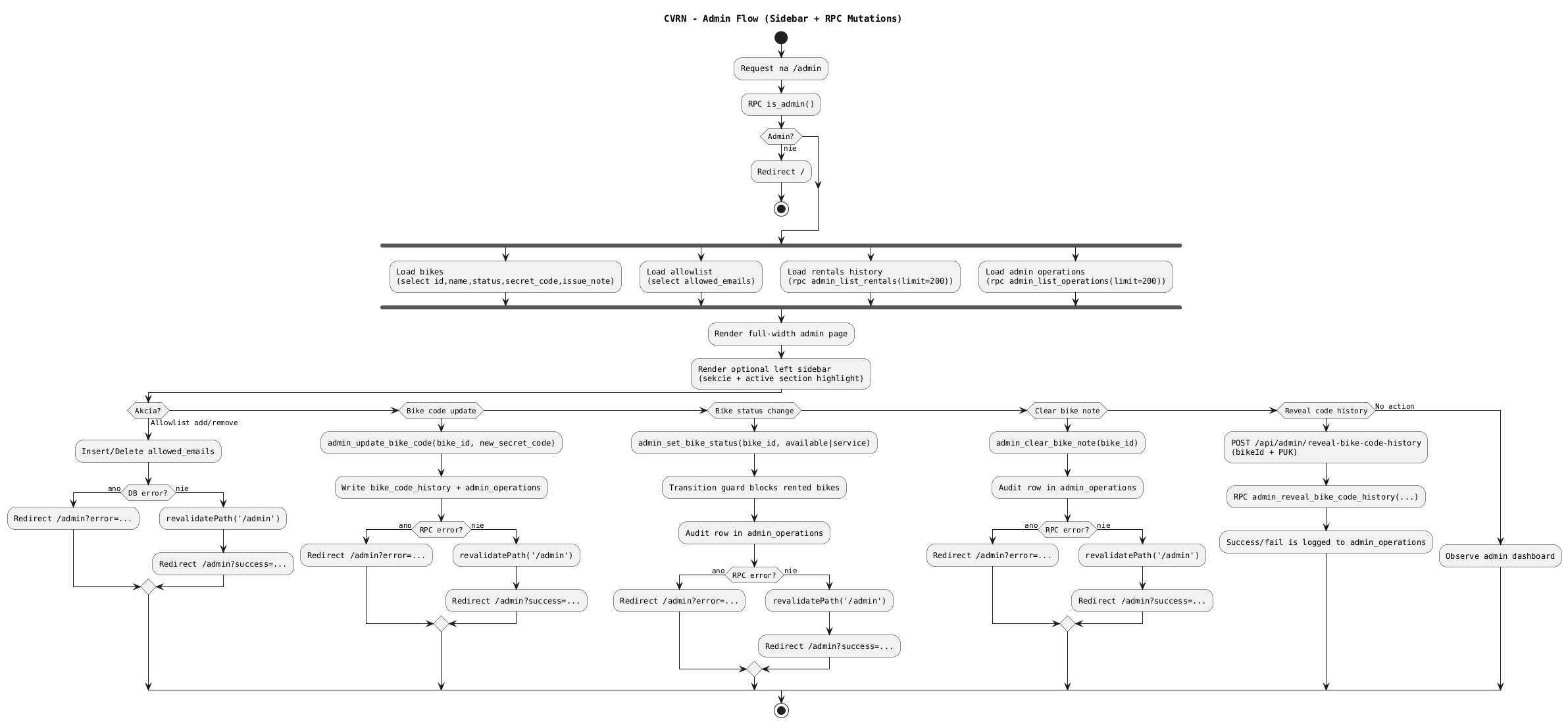

title CVRN - Admin Flow (Sidebar + RPC Mutations)

skinparam shadowing false
skinparam defaultFontName Monospaced

start
:Request na /admin;

:RPC is_admin();
if (Admin?) then (nie)
  :Redirect /;
  stop
endif

fork
  :Load bikes\n(select id,name,status,secret_code,issue_note);
fork again
  :Load allowlist\n(select allowed_emails);
fork again
  :Load rentals history\n(rpc admin_list_rentals(limit=200));
fork again
  :Load admin operations\n(rpc admin_list_operations(limit=200));
end fork

:Render full-width admin page;
:Render optional left sidebar\n(sekcie + active section highlight);

if (Akcia?) then (Allowlist add/remove)
  :Insert/Delete allowed_emails;
  if (DB error?) then (ano)
    :Redirect /admin?error=...;
  else (nie)
    :revalidatePath('/admin');
    :Redirect /admin?success=...;
  endif
elseif (Bike code update)
  :admin_update_bike_code(bike_id, new_secret_code);
  :Write bike_code_history + admin_operations;
  if (RPC error?) then (ano)
    :Redirect /admin?error=...;
  else (nie)
    :revalidatePath('/admin');
    :Redirect /admin?success=...;
  endif
elseif (Bike status change)
  :admin_set_bike_status(bike_id, available|service);
  :Transition guard blocks rented bikes;
  :Audit row in admin_operations;
  if (RPC error?) then (ano)
    :Redirect /admin?error=...;
  else (nie)
    :revalidatePath('/admin');
    :Redirect /admin?success=...;
  endif
elseif (Clear bike note)
  :admin_clear_bike_note(bike_id);
  :Audit row in admin_operations;
  if (RPC error?) then (ano)
    :Redirect /admin?error=...;
  else (nie)
    :revalidatePath('/admin');
    :Redirect /admin?success=...;
  endif
elseif (Reveal code history)
  :POST /api/admin/reveal-bike-code-history\n(bikeId + PUK);
  :RPC admin_reveal_bike_code_history(...);
  :Success/fail is logged to admin_operations;
else (No action)
  :Observe admin dashboard;
endif

stop

@enduml

Copy@startuml

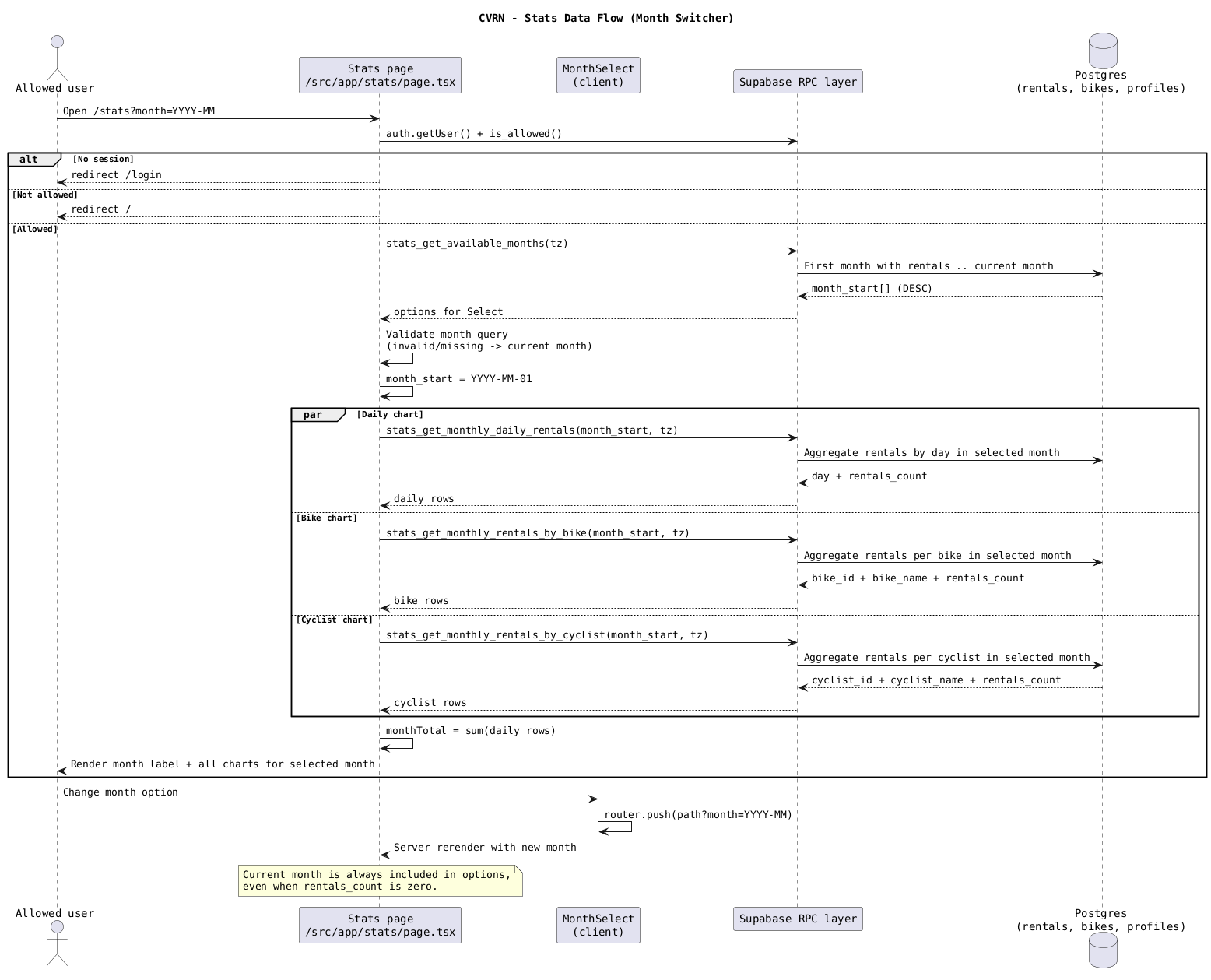

title CVRN - Stats Data Flow (Month Switcher)

skinparam shadowing false
skinparam defaultFontName Monospaced

actor "Allowed user" as User
participant "Stats page\n/src/app/stats/page.tsx" as StatsPage
participant "MonthSelect\n(client)" as MonthSelect
participant "Supabase RPC layer" as RPC
database "Postgres\n(rentals, bikes, profiles)" as DB

User -> StatsPage: Open /stats?month=YYYY-MM
StatsPage -> RPC: auth.getUser() + is_allowed()

alt No session
  StatsPage --> User: redirect /login
else Not allowed
  StatsPage --> User: redirect /
else Allowed
  StatsPage -> RPC: stats_get_available_months(tz)
  RPC -> DB: First month with rentals .. current month
  DB --> RPC: month_start[] (DESC)
  RPC --> StatsPage: options for Select

  StatsPage -> StatsPage: Validate month query\n(invalid/missing -> current month)
  StatsPage -> StatsPage: month_start = YYYY-MM-01

  par Daily chart
    StatsPage -> RPC: stats_get_monthly_daily_rentals(month_start, tz)
    RPC -> DB: Aggregate rentals by day in selected month
    DB --> RPC: day + rentals_count
    RPC --> StatsPage: daily rows
  else Bike chart
    StatsPage -> RPC: stats_get_monthly_rentals_by_bike(month_start, tz)
    RPC -> DB: Aggregate rentals per bike in selected month
    DB --> RPC: bike_id + bike_name + rentals_count
    RPC --> StatsPage: bike rows
  else Cyclist chart
    StatsPage -> RPC: stats_get_monthly_rentals_by_cyclist(month_start, tz)
    RPC -> DB: Aggregate rentals per cyclist in selected month
    DB --> RPC: cyclist_id + cyclist_name + rentals_count
    RPC --> StatsPage: cyclist rows
  end

  StatsPage -> StatsPage: monthTotal = sum(daily rows)
  StatsPage --> User: Render month label + all charts for selected month
end

User -> MonthSelect: Change month option
MonthSelect -> MonthSelect: router.push(path?month=YYYY-MM)
MonthSelect -> StatsPage: Server rerender with new month

note over StatsPage
  Current month is always included in options,
  even when rentals_count is zero.
end note

@enduml

Copy@startuml

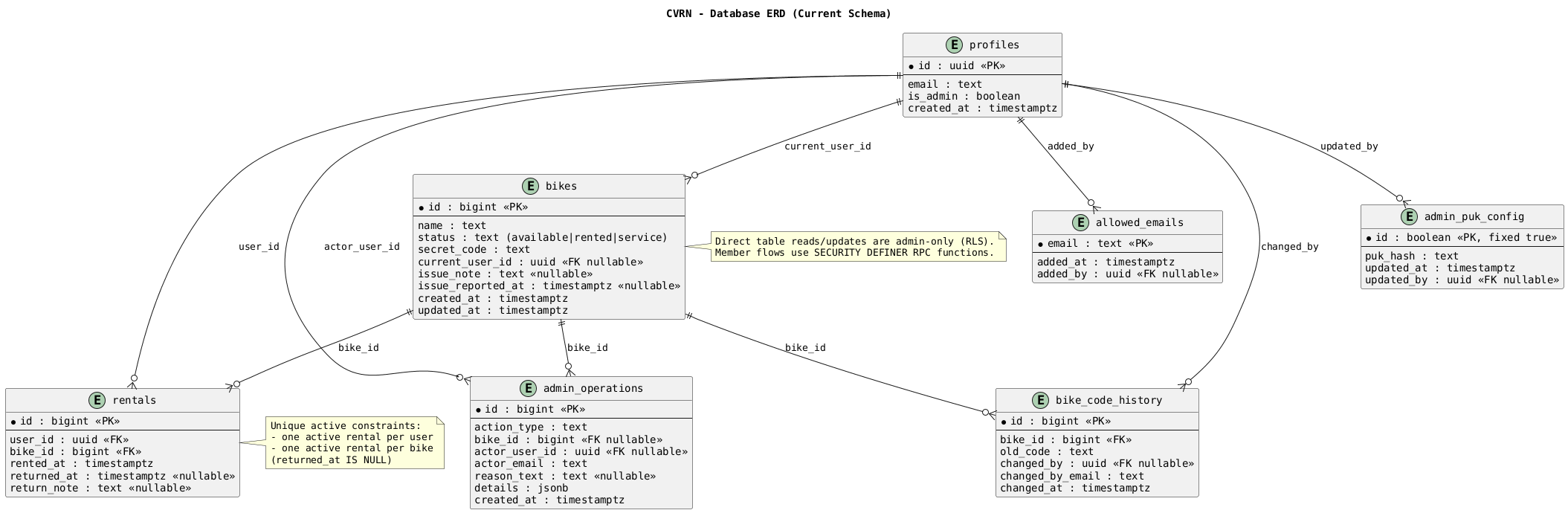

title CVRN - Database ERD (Current Schema)

skinparam shadowing false
skinparam defaultFontName Monospaced
hide methods

entity "profiles" as profiles {
  * id : uuid <<PK>>
  --
  email : text
  is_admin : boolean
  created_at : timestamptz
}

entity "bikes" as bikes {
  * id : bigint <<PK>>
  --
  name : text
  status : text (available|rented|service)
  secret_code : text
  current_user_id : uuid <<FK nullable>>
  issue_note : text <<nullable>>
  issue_reported_at : timestamptz <<nullable>>
  created_at : timestamptz
  updated_at : timestamptz
}

entity "rentals" as rentals {
  * id : bigint <<PK>>
  --
  user_id : uuid <<FK>>
  bike_id : bigint <<FK>>
  rented_at : timestamptz
  returned_at : timestamptz <<nullable>>
  return_note : text <<nullable>>
}

entity "allowed_emails" as allowed_emails {
  * email : text <<PK>>
  --
  added_at : timestamptz
  added_by : uuid <<FK nullable>>
}

entity "admin_operations" as admin_operations {
  * id : bigint <<PK>>
  --
  action_type : text
  bike_id : bigint <<FK nullable>>
  actor_user_id : uuid <<FK nullable>>
  actor_email : text
  reason_text : text <<nullable>>
  details : jsonb
  created_at : timestamptz
}

entity "bike_code_history" as bike_code_history {
  * id : bigint <<PK>>
  --
  bike_id : bigint <<FK>>
  old_code : text
  changed_by : uuid <<FK nullable>>
  changed_by_email : text
  changed_at : timestamptz
}

entity "admin_puk_config" as admin_puk_config {
  * id : boolean <<PK, fixed true>>
  --
  puk_hash : text
  updated_at : timestamptz
  updated_by : uuid <<FK nullable>>
}

profiles ||--o{ rentals : user_id
bikes ||--o{ rentals : bike_id
profiles ||--o{ bikes : current_user_id
profiles ||--o{ allowed_emails : added_by
profiles ||--o{ admin_operations : actor_user_id
bikes ||--o{ admin_operations : bike_id
profiles ||--o{ bike_code_history : changed_by
bikes ||--o{ bike_code_history : bike_id
profiles ||--o{ admin_puk_config : updated_by

note right of rentals
  Unique active constraints:
  - one active rental per user
  - one active rental per bike
  (returned_at IS NULL)
end note

note right of bikes
  Direct table reads/updates are admin-only (RLS).
  Member flows use SECURITY DEFINER RPC functions.
end note

@enduml

Copy@startuml

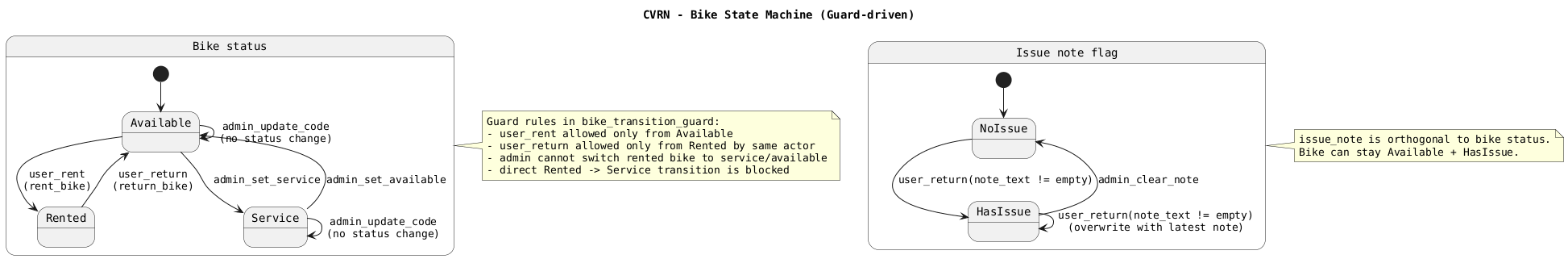

title CVRN - Bike State Machine (Guard-driven)

skinparam shadowing false
skinparam defaultFontName Monospaced

state "Bike status" as BikeStatus {
  [*] --> Available

  Available --> Rented : user_rent\n(rent_bike)
  Rented --> Available : user_return\n(return_bike)

  Available --> Service : admin_set_service
  Service --> Available : admin_set_available

  Available --> Available : admin_update_code\n(no status change)
  Service --> Service : admin_update_code\n(no status change)
}

state "Issue note flag" as IssueFlag {
  [*] --> NoIssue

  NoIssue --> HasIssue : user_return(note_text != empty)
  HasIssue --> NoIssue : admin_clear_note

  HasIssue --> HasIssue : user_return(note_text != empty)\n(overwrite with latest note)
}

note right of BikeStatus
  Guard rules in bike_transition_guard:
  - user_rent allowed only from Available
  - user_return allowed only from Rented by same actor
  - admin cannot switch rented bike to service/available
  - direct Rented -> Service transition is blocked
end note

note right of IssueFlag
  issue_note is orthogonal to bike status.
  Bike can stay Available + HasIssue.
end note

@enduml

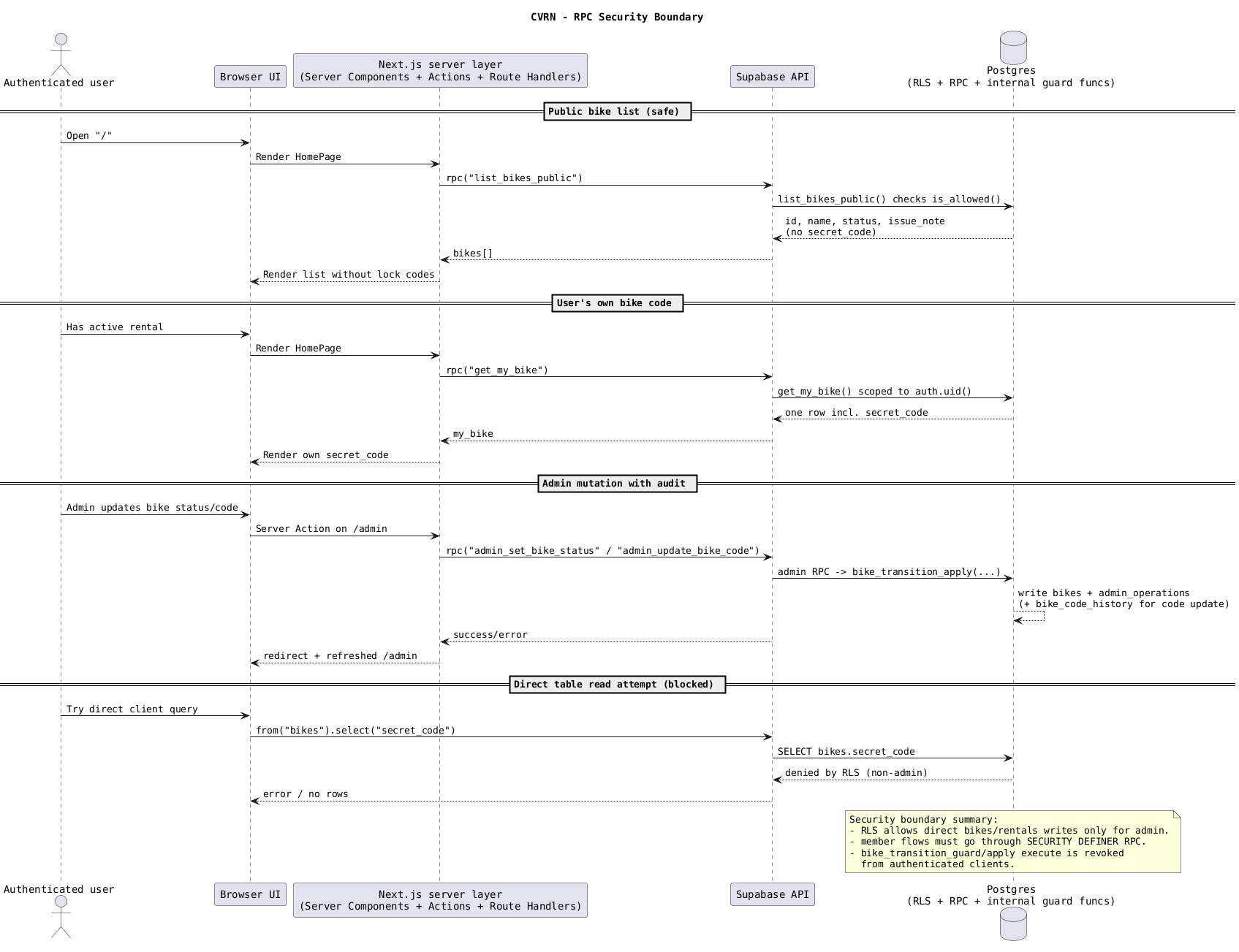

Copy@startuml
title CVRN - RPC Security Boundary

skinparam shadowing false
skinparam defaultFontName Monospaced

actor "Authenticated user" as User
participant "Browser UI" as Browser
participant "Next.js server layer\n(Server Components + Actions + Route Handlers)" as Server
participant "Supabase API" as Supabase
database "Postgres\n(RLS + RPC + internal guard funcs)" as DB

== Public bike list (safe) ==
User -> Browser: Open "/"
Browser -> Server: Render HomePage
Server -> Supabase: rpc("list_bikes_public")
Supabase -> DB: list_bikes_public() checks is_allowed()
DB --> Supabase: id, name, status, issue_note\n(no secret_code)
Supabase --> Server: bikes[]
Server --> Browser: Render list without lock codes

== User's own bike code ==
User -> Browser: Has active rental
Browser -> Server: Render HomePage
Server -> Supabase: rpc("get_my_bike")
Supabase -> DB: get_my_bike() scoped to auth.uid()
DB --> Supabase: one row incl. secret_code
Supabase --> Server: my_bike
Server --> Browser: Render own secret_code

== Admin mutation with audit ==
User -> Browser: Admin updates bike status/code
Browser -> Server: Server Action on /admin
Server -> Supabase: rpc("admin_set_bike_status" / "admin_update_bike_code")
Supabase -> DB: admin RPC -> bike_transition_apply(...)
DB --> DB: write bikes + admin_operations\n(+ bike_code_history for code update)
Supabase --> Server: success/error
Server --> Browser: redirect + refreshed /admin

== Direct table read attempt (blocked) ==
User -> Browser: Try direct client query
Browser -> Supabase: from("bikes").select("secret_code")
Supabase -> DB: SELECT bikes.secret_code
DB --> Supabase: denied by RLS (non-admin)
Supabase --> Browser: error / no rows

note over DB
  Security boundary summary:
  - RLS allows direct bikes/rentals writes only for admin.
  - member flows must go through SECURITY DEFINER RPC.
  - bike_transition_guard/apply execute is revoked
    from authenticated clients.
end note

@enduml

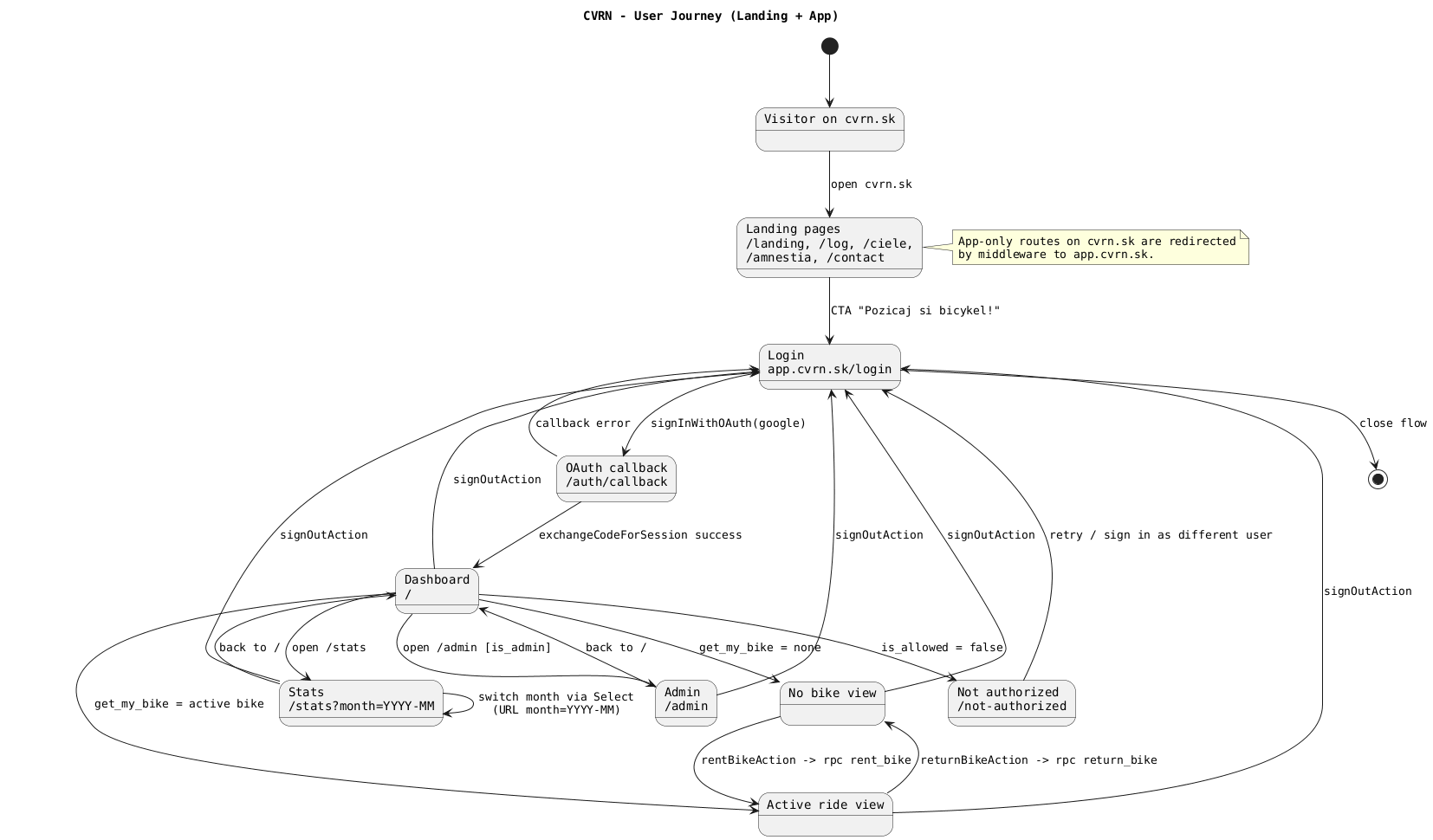

Copy@startuml
title CVRN - User Journey (Landing + App)

skinparam shadowing false
skinparam defaultFontName Monospaced

[*] --> Visitor

state "Visitor on cvrn.sk" as Visitor
state "Landing pages\n/landing, /log, /ciele,\n/amnestia, /contact" as Landing
state "Login\napp.cvrn.sk/login" as Login
state "OAuth callback\n/auth/callback" as Callback
state "Dashboard\n/" as Dashboard
state "Not authorized\n/not-authorized" as NotAuthorized
state "No bike view" as NoBike
state "Active ride view" as HasBike
state "Stats\n/stats?month=YYYY-MM" as Stats
state "Admin\n/admin" as Admin

Visitor --> Landing : open cvrn.sk
Landing --> Login : CTA "Pozicaj si bicykel!"

Login --> Callback : signInWithOAuth(google)
Callback --> Dashboard : exchangeCodeForSession success
Callback --> Login : callback error

Dashboard --> NotAuthorized : is_allowed = false
NotAuthorized --> Login : retry / sign in as different user

Dashboard --> NoBike : get_my_bike = none
Dashboard --> HasBike : get_my_bike = active bike

NoBike --> HasBike : rentBikeAction -> rpc rent_bike
HasBike --> NoBike : returnBikeAction -> rpc return_bike

Dashboard --> Stats : open /stats
Stats --> Stats : switch month via Select\n(URL month=YYYY-MM)
Stats --> Dashboard : back to /

Dashboard --> Admin : open /admin [is_admin]
Admin --> Dashboard : back to /

Dashboard --> Login : signOutAction
NoBike --> Login : signOutAction
HasBike --> Login : signOutAction
Stats --> Login : signOutAction
Admin --> Login : signOutAction

Login --> [*] : close flow

note right of Landing
  App-only routes on cvrn.sk are redirected
  by middleware to app.cvrn.sk.
end note

@enduml

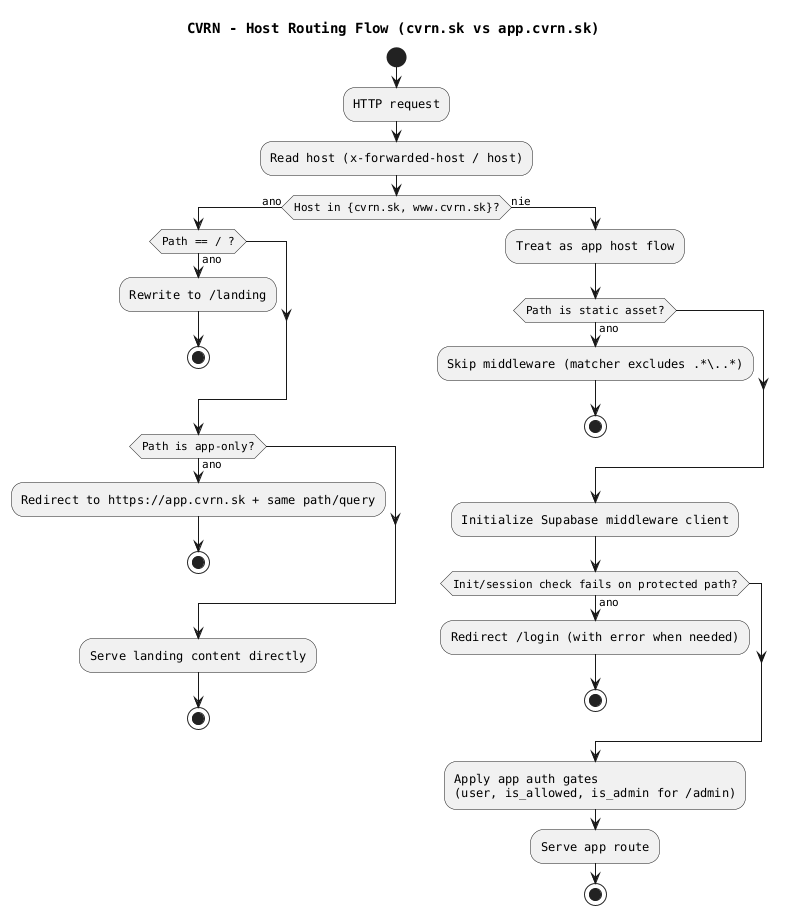

Copy@startuml
title CVRN - Host Routing Flow (cvrn.sk vs app.cvrn.sk)

skinparam shadowing false
skinparam defaultFontName Monospaced

start
:HTTP request;
:Read host (x-forwarded-host / host);

if (Host in {cvrn.sk, www.cvrn.sk}?) then (ano)
  if (Path == / ?) then (ano)
    :Rewrite to /landing;
    stop
  endif

  if (Path is app-only?) then (ano)
    :Redirect to https://app.cvrn.sk + same path/query;
    stop
  endif

  :Serve landing content directly;
  stop
else (nie)
  :Treat as app host flow;

  if (Path is static asset?) then (ano)
    :Skip middleware (matcher excludes .*\\..*);
    stop
  endif

  :Initialize Supabase middleware client;
  if (Init/session check fails on protected path?) then (ano)
    :Redirect /login (with error when needed);
    stop
  endif

  :Apply app auth gates\n(user, is_allowed, is_admin for /admin);
  :Serve app route;
  stop
endif

@enduml
